NEE AMC4 CNC Controller
Overview
A CNC controlled found driving older Onsrud CNC routers.
Replacement Parts

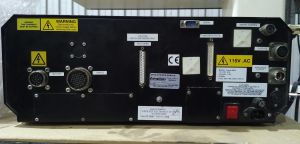

Connectors
| Connector Label | Original Part No. | Similar Part | Mating Cable End |
|---|---|---|---|
| Motors | 17-14 position circular connector | TE 1-213825-7 |
Thomas & Betts M1710-P14 |
| Drives | 23-37 position circular connector | TE 1-213828-0 |
Thomas & Betts M2310-P37 |
| Encoders | DC-37 panel mount receptacle w/ female sockets | Assmann A-DF 37 LL/Z | |
| Serial | |||
| Inputs/Outputs | DC-37 panel mount plug w/ male pins | Assmann A-DS 37 LL/Z | |
| Safety Control | DIN (210 degrees) panel mount receptacle w/ female sockets | Switchcraft 60HA4FX | Switchcraft 09CL4MX CUI SD-40 |
| Outputs | Amphenol M33102A 14S-6S | Amphenol 97-3102A-14S-6S | |
| Analogue Outputs | M1131-P04 / 1-1437726-2 | TE 1-207825-5 |
Online Resources
AMC 4 | Burny Kaliburn (Wayback Machine)
AMC 4C2 | Burny Kaliburn (Wayback Machine)
AMC-B | Burny Kaliburn (Wayback Machine)
AMC WinAMC | Burny Kaliburn (Wayback Machine)
AMC Programming | Burny Kaliburn (Wayback Machine)
AMC Utilities | Burny Kaliburn (Wayback Machine)
NEE Controls Ltd AMC Controller Range Specification (December 2002) (dead link now)
AMC Specification (Wayback Machine)
AMC IO Capability (Wayback Machine)
Lockformer AMC4 Cutter Controller User Guide | Yumpu (Lockformer AMC4 Cutter Controller User Guide.pdf)
LOCKFORMER VULCAN 2900 OPERATOR'S MANUAL Pdf Download | ManualsLib
https://www.hweiss.com/media/wysiwyg/PartsLists/Vulcan2900_Operators_Manual_PP.pdf#page=63 (NEE controller interior)
Legacy Products of Lincoln Electric Cutting Solutions
Control | Kerf Developments | Supply a range of controllers and spare parts
CR Onsrud NEE AMC Controls Repair
NEE Controls Ltd company details from DPA Magazine
Motion Controllers and Machine Controllers from NEE (Wayback Machine)
Need Help! NEE - AMC Control on Onsrud Router
Commercial CNC Wood Routers > NEE - AMC Control on Onsrud Router (Michel Rigaud / rmetoile posted here too)
Looking for a copy of Burny/ITT WinAMC software for an AMC4 controllor/laser cutter
