Mitsubishi FR-A700 Series VFDs

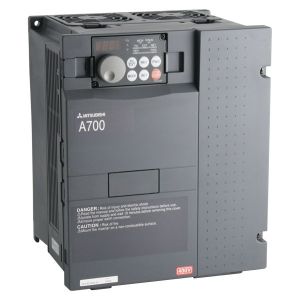

Mitsubishi FR-A700 series (stock photo)

Overview

Variable frequency drives made by Mitsubishi.

Model Numbers

IB(NA)-0600225ENG-G manual:

• Page 8 (Page 1 in the PDF) shows the model number breakdown
• Page 192 (Page 185 in the PDF) shows the specifications based off the model number

IB(NA)-0600226ENG-E manual:

• Page 13 (Page 2 in the PDF) shows the model number breakdown
• Page 453 (Page 442 in the PDF) shows the specifications based off the model number

Wiring Diagram

IB(NA)-0600225ENG-G manual:

• Page 16 (Page 9 in the PDF) shows a wiring example
• Page 18 (Page 11 in the PDF) lists the power terminals and then shows the physical layout
• Page 26 (Page 19 in the PDF) lists the control terminal signals
• Page 31 (Page 24 in the PDF) shows the physical layout of the control terminals
• Page 33 (Page 26 in the PDF) shows the RS-485 terminal block pinout
• Page 34 (Page 27 in the PDF) shows the USB connector

IB(NA)-0600226ENG-E manual:

• Page 25 (Page 14 in the PDF) shows a wiring example
• Page 27 (Page 16 in the PDF) lists the power terminals and then shows the physical layout
• Page 36 (Page 25 in the PDF) lists the control terminal signals
• Page 41 (Page 30 in the PDF) shows the physical layout of the control terminals
• Page 43 (Page 32 in the PDF) shows the RS-485 terminal block pinout

Online Resources

A700 Series VFD Legacy Products | Mitsubishi Electric US Industrial Automation

Mitsubishi Inverter FR-A700 Instruction Manual (Basic) (IB(NA)-0600225ENG-G, March 2015)

Mitsubishi Inverter FR-A700 Instruction Manual (Applied) (IB(NA)-0600226ENG-E, February 2012)
