HALaser E1701D Digital Scan Head Controller Card

Overview

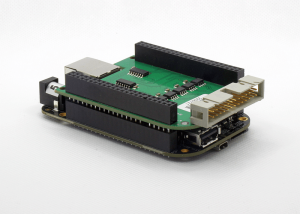

German made control card "cape" on a BeagleBone Black. It allows a galvo head fiber laser to be controlled with HALaser's software "BeamConstruct".

Wiring Diagram

• Page 25 shows the 26-pin IDC / 25-pin D-Sub XY2-100 interface pinout

Online Resources

HALaser Systems - Laser Marking Engraving Etching and Cutting Software - Scanner Controller Cards - An Industry 4.0 Company

HALaser Systems E1701 Modular Scanner Controller Users Manual (06/2022)
