Overview
Taiwanese servo drives meant for servo motors from the same company. They can have both high and low resolution incremental encoders that both use an RS-485 type serial protocol.
Model Numbers
- Page 18 (1-3 in the PDF) gives the servo drive model number scheme.
- Page 19 (1-4 in the PDF) gives the servo motor model number scheme.
Wiring Diagram
- Page 38 (3-1 in the PDF) gives an overview of the connectors.
- Page 45 (3-8 in the PDF) gives the encoder cable pinout.
- Page 53 (3-16 in the PDF) gives the CN1 "I/O Signal" connector pinout.
- Page 71 (3-34 in the PDF) gives the CN2 "Encoder" connector pinout.
- Page 73 (3-36 in the PDF) gives the CN3 "Communication" connector pinout.
Dimensions
- Page 305 (10-16 in the PDF) has a dimensional diagram.
Replacement Parts
RS-232 Cable
ASD-CARS0003
The cable has an IEEE 1394 plug for CN3 on the servo drive, and a female DE9 plug with male #4-40 thumbscrews for RS-232. The RS-232 DE9 pinout is designed to interface with a DTE (PC) directly without a null modem adapter.
Pin mapping:
| IEEE 1394 Pin | DE9 Pin | Function |
|---|---|---|
| 1 | 5 | GND |
| 2 | 2 | RS-232 TX (drive → PC) |
| 3 | ||
| 4 | 3 | RS-232 RX (drive ← PC) |
| 5 | ||
| 6 | ||
| (shield) | (shield) | shield |
Online Resources
Delta ASDA-B2 Series User Manual (DELTA_IA-ASDA_B2_UM_EN_20141218, Version: V2.1) (Wayback Machine)
Delta ASDA-B2 Series User Manual (DELTA_IA-ASDA_B2_UM_EN_20141218, Version: V2.1) (dead now)

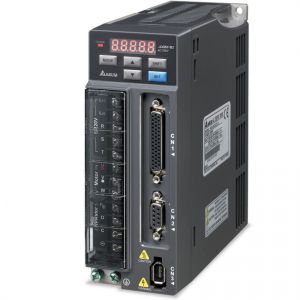

AC Servo Drive 400W ASD-B2-0421-B | DamenCNC B.V. (source for stock image)
