Lichuan AC Servo Motors

Lichuan LCMT-07L02-80M02430 on eBay

Overview

Servo motors from the Chinese company "Shenzen Xinli Chuan Electric Co., Ltd.", aka Lichuan.

The motors can have either Tamagawa 2500 PPR quadrature (ABZ/UVW) encoders, or Tamagawa 17-bit absolute serial encoders as feedback.

The 2500 PPR models can be used with their B2 and A4 series servo drives, while the 17-bit encoder models can be used with their A6 series drives.

Model Numbers

• model number scheme image

Specifications

Series	Power	Shaft Diameter	Shaft Length	Boss Diameter	Bolt Hole Circle	Length
40	50 - 100W	8mm	25mm	30mm	46mm	75mm - 90mm
60	200 - 600W	14mm	30mm	50mm	70mm	115 - 154mm
80	400 - 1000W	19mm	35mm	70mm	90mm	123 - 190mm
90	750 - 1000W	16mm	35mm	80mm	100mm	149 - 181mm
110	600 - 1800W	19mm	55mm	95mm	130mm	159 - 219mm
130	1000W - 3800W	22mm	57mm	110mm	145mm	166 - 213mm?
180	2700 - 7500W	35mm	65mm	114.3mm	200mm	226 - 346mm

Photos

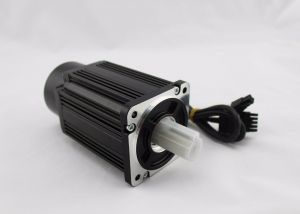

LCMT-07L02-80M02430

•
•
•

Taken from eBay seller lichuan.motor's item eBay Item #173835511299 listing.

Online PDFs

• 40mm series
• 60mm series
• 80mm series
• 90mm series
• 110mm series
• 130mm series
• 180mm series
